Need advice?

What size of installation do I need?
Where should I install the panels?
What type of panel should I choose?


razor-thin, nothing protruding


recessed wires, flat back


wire exit through deck or on top


step-on array with anti-skid strips
less sensitive to partial shadow


Bluewater™ arrays adapt to rounded surfaces


Boom mount at anchor


Bluewater™ 10 module

Bluewater™ 20 module

Compact™ 20 module

Compact™ 40 module
Features
(all models)
Sizes
from 10 W to 160 W and beyond
See us at:


United States Sailboat Show, Annapolis, MD, October 7-11, 2010
We are coexhibiting with Hot Wire enterprises in tent K booth 7-9

Features not found on other solar panels:

• Efficient - monocrystalline silicon provides twice the power of thin film panels

• Ultrathin - All models are only 3/16" (4.5 mm) thick

• Light-weight - ideal for racing, or for mounting on a bimini, dodger or other light structure

• Flat front - there is NOTHING protruding from the surface that can catch sheets, sails or your feet

• Snug-fit back - wires are recessed and protected in grooves, either mounted hidden through tiny holes to interior or without holes on top

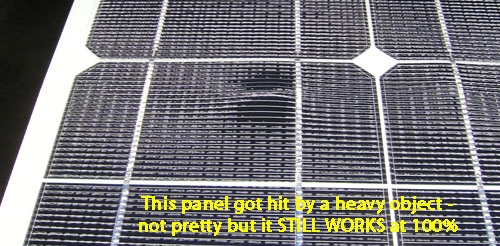

• Rugged - sealed with a durable UV-resistant surface, salt water proof to IP67

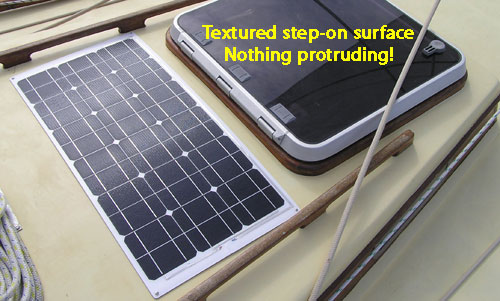

• Step-on - you can step on the textured surface and add optional anti-skid strips

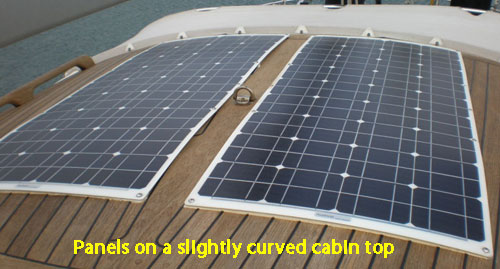

• Mount on curved surface - the narrow Bluewater modules are slightly flexible and can be installed to follow a curved cabin roof or deck

• Temporary use at anchor - mount on boom with bungee cords, then store under bunk or cushion while underway

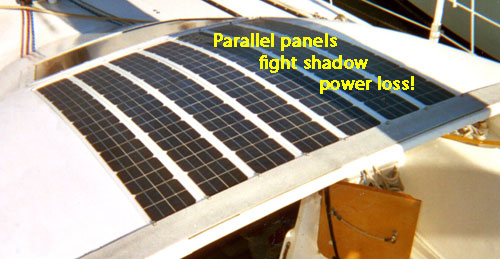

• Partial shade resistance - an array of modules is less sensitive to major power loss from boom, mast and sail shadow than a large single panel

• Beautiful - not an eyesore on the boat you are so proud of
Sizes:
Length Width Power Modules Price
Arrays based on the Bluewater™10 module:
25 1/4" (640 mm) 6" (153 mm) 10 W 1 x Bluewater 10 $ 150
25 1/4" (640 mm) 12" (306 mm) 20 W 2 x Bluewater 10 $ 291
25 1/4" (640 mm) 18" (459 mm) 30 W 3 x Bluewater 10 $ 428
25 1/4" (640 mm) 24" (612 mm) 40 W 4 x Bluewater 10 $ 558
25 1/4" (640 mm) 30" (765 mm) 50 W 5 x Bluewater 10 $ 683
25 1/4" (640 mm) 36" and above ≥60 W
Arrays based on the Bluewater™ 20 module:
47 1/2" (1205 mm) 6" (153 mm) 20 W 1 x Bluewater 20 $280
47 1/2" (1205 mm) 12" (306 mm) 40 W 2 x Bluewater 20 $544
47 1/2" (1205 mm) 18" (459 mm) 60 W 3 x Bluewater 20 $798
47 1/2" (1205 mm) 24" (612 mm) 80 W 4 x Bluewater 20 $1,042
47 1/2" (1205 mm) 30" (765 mm) 100 W 5 x Bluewater 20 $1,274
47 1/2" (1205 mm) 36" and above ≥120 W Example
Arrays based on Compact™ series modules:
18 1/2" (460 mm) 16 1/4" (410 mm) 20 W 1 x Compact 20 $280
33 1/8" (840 mm) 16 1/4" (410 mm) 40 w 1 x Compact 40 $480
51 5/8" (1300 mm) 16 1/4" (410 mm) 60 W 1 x C 20 + 1 x C40 $722
33 1/8" (840 mm) 32 1/2" (820 mm) 80 W 2 x C 40 $932
51 5/8" (1300 mm) 32 1/2" (820 mm) 120 W 2 x C 20 + 2 x C 40 $1,406
33 1/8" (840 mm) 48 3/4" (1230 mm) 120 W 3 x C40 $1,368
66 1/4" (1680 mm) 32 1/2" (820 mm) 160 W 4 x C40 $1,786
33 1/8" (840 mm) 65" (1620 mm) 160 W 4 x C40 $1,786
other Contact us
